SCR Digital Control Electronic Voltage

SCR Digital Control Electronic Voltage

$32.99 $48.99
Color

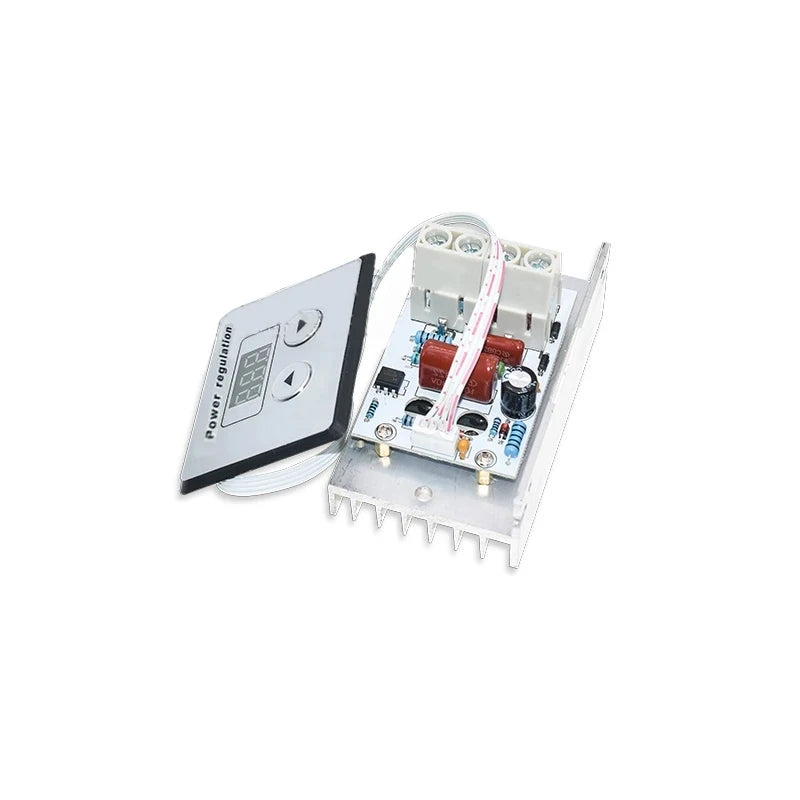

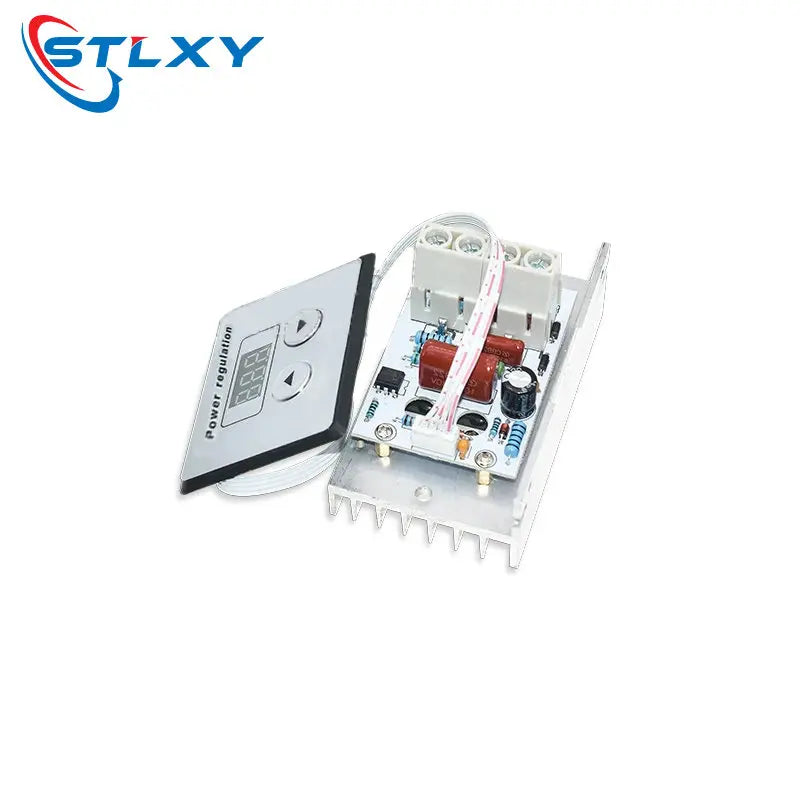

AC 220V 10000W SCR Digital Control Electronic Voltage Regulator Speed Control Dimmer Thermostat + Digital Meters Power Supply


Specifications:
Voltage: AC 220V
Max Power: 10000W(instantaneous limit power for impedance load; for long time use,5000w or lower is recommended)
Voltage Adjustment: 0-100% (nonlinear)
Controller Size: 95.7*56.7*53.8mm/3.76*2.23*2.11"
Panel Size: 74.6*59.8*2.3mm/2.93*2.35*0.09"

Cable Length: 287mm/11.3"

Note:


1,AC input,AC output,output voltage is lower than(or equal to) input voltage; voltage can be adjusted only when connected to load; mainly used for resistive load.

2,It can not replace electric bicycles' battery charger,nor drive electric appliances which use switch power supply (such as 110V TV,speaker,refrigerator,air conditioner,rice cooker with a computer),and cannot drive induction cooker,energy saving lamp.

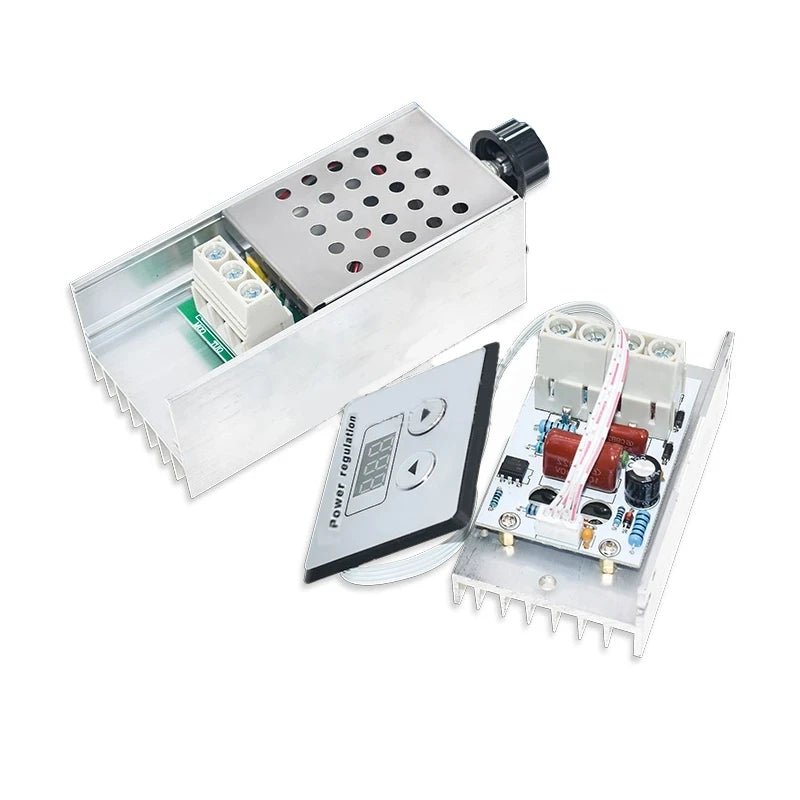

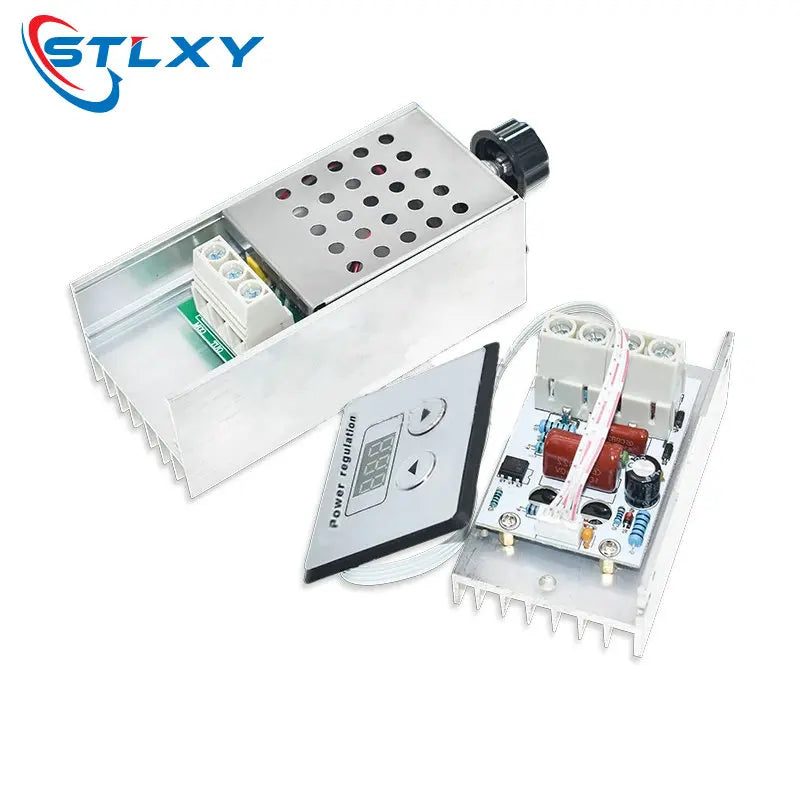

This Product has a Green PCB Board and White PCB Board,The Function is the Same,It's the Color of PCB Board Different only,And the Panel We Has 2 Different Version(Swithch & Without),We Will Randomly,Please Note.

Features:

  • This item has new two-way large power silicon controlled rectifier and the current can be up to 80A,which is a good solution to over-current of electric stove wire caused by low resistance during cooling.

  • It can easily adjust the output voltage on a scale of 0-100% (nonlinear) to power electric device.

  • Designed with large and thick heat sink that would enhance heat dissipation.

  • This voltage regulator is adjusted with button which is much more stable than potentiometer.

  • Voltage regulator has wave voltage absorbing circuit and effective protects large power silicon controlled rectifier,longer service life and more durable.

  • It can be used as power supply for large electrical devices of less than 10000W,enough for household appliances or for small factory.

  • Could be widely used as heat controller on electric stoves,water heaters,light dimmer on lamps,speed controller on small motors,or temperature controller on electric soldering iron.

Package Includes:
1 x SCR Controller
1 x ABS Panel
1 x Panel Sticker
1 x Cable

Military level double circuit board design

High-voltage condenser
ST trigger diode

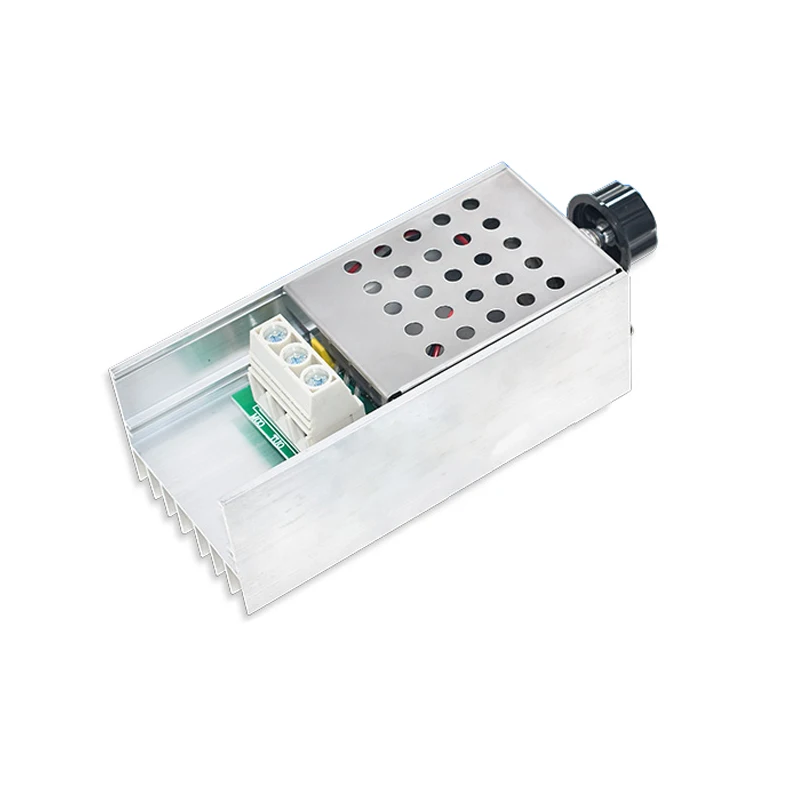

With heatsink
Features:
Voltage: AC 220V
Maximum Power: 10000W (5000W can be used ar room temperature for a long time)
Voltage Regulation: AC 10V to 220V (Adjust begin 20V)
Dimensions: 130 * 60 * 47mm
Application:
Electric furnace,water heater,the lamps and laterns that move light,samll motor,solder iron temperature control and so on(Inductive or capacity load power should be reduced,the voltage regulator is equipped with two-way high-power thyrister,don't add any component can use,very convenient and practical.)
